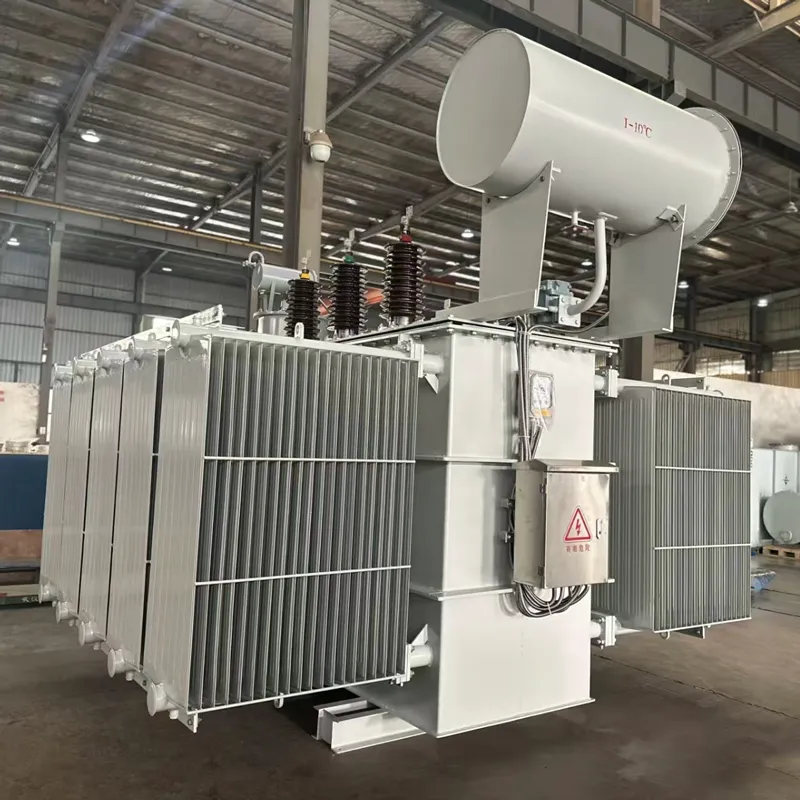

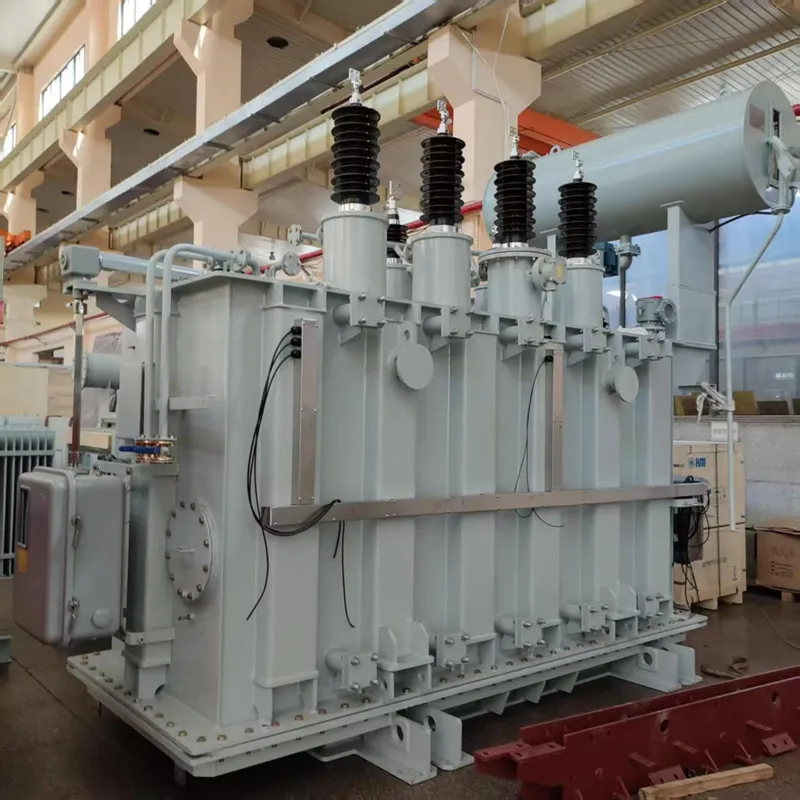

66kV High-Voltage Oil-Immersed Transformer from Subian Electric’s Xuzhou Factory
The 66kV power transformer that uses oil for its function has a very good potential in power e.g. the transformer can be used in medium voltage networks serving industries, mining sites and transport connections continuously. The transformer has a good ability to withstand short-circuit operation as well as low losses of electricity as compared with the requirements established by the country.
Applications & circuit protection
This transformer is suitable for transmission and distribution installation for business electrical applications, city and rural agricultural distribution and infrastructure projects.
- Industrial parks: Reliable energy supply for big facilities.
- Mines: Mining operations of non-metallic and metallic substances.
- Transport: Roads, airports and railways infrastructure.
- Regional grids: Distribution and transmission facilities.
Construction & operating reliability
Superior-quality materials for core and windings, effective cooling, and strong structural design ensure great efficiency and long performance period.
- Three-phase design of 66 kV.
- Lower losses than defined by national standards.
- Strong short circuit resistance.
- Silent operation.
- Reliable support of infrastructure projects.
Technical Parameter
| Parameter | Value |
| Rated capacity range | 6300-63000 kVA |
| Voltage combination (HV) | 110 ±8×2.5% kV |
| Tap range | 36 / 37 / 38.5 kV (MV) |
| Voltage (LV) | 6.3 / 6.6 / 10.5 / 21 kV |
| Connection group | YNyn0d11 |
| No-load loss (typical range) | 8900-25000 W |
| Load loss (typical range) | 44000-300000 W |
| No-load current (typical range) | 0.4-0.76% |
| Short-circuit impedance | 10.5% (H-M) |
| Voltage level | 66 kV, three-phase |
| Application | Transmission and distribution links |
| Cooling method | Oil-immersed (ONAN) |
| Loss level | Lower than national standards |
| Short-circuit tolerance | Strong |
| Noise | Quiet operation |
| Standard | IEC 60076 / GB 1094 |
